The synchronous condensers will maintain grid stability as the Tennessee utility integrates renewable energy.
A retired coal-fired power plant will soon be repurposed to host two synchronous condensers, helping the Tennessee Valley Authority (TVA) maintain grid stability amid rising electricity demand and variability from renewables.
In conventional fossil fuel plants, synchronous generators are mechanically coupled to the grid and rotate in sync with its frequency. As TVA retires its coal fleet, it’s exploring strategies to supplement that function while the grid integrates a growing share of non-synchronous, inverter-based resources like solar farms.
TVA has tapped Ireland-based Eaton to handle the project at the Bull Run Fossil Plant in Clinton, Tennessee, where electrical and mechanical engineers will convert a two-generator unit into two 605 MVAR synchronous condensers.

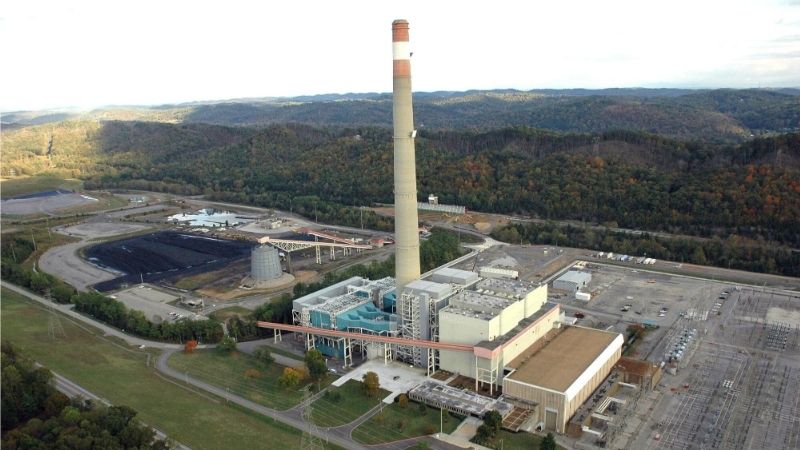

The Bull Run Fossil Plant. Image used courtesy of TVA
Inertia for Transmission System Support
The synchronous condensers will help TVA balance inertia as its power system transitions away from large, steam-turbine-based generators that traditionally provided rotational inertia. This response is essential for damping frequency fluctuations and maintaining voltage stability, two key challenges in the transition to variable wind and solar power.
Like generators, synchronous condensers are designed to support the transmission grid. But they don’t actually produce real power. Spinning without fuel provides reactive power and inertia, both critical for frequency response and fault-ride-through.
Condensers can be installed in place of decommissioned power generation equipment, as is the case with TVA’s retired Bull Run Fossil Plant. The facility was retired in late 2023 after 56 years of operating. It was the last single-generator coal facility in TVA’s territory.
Bull Run’s decommissioning is ongoing. TVA has demolished the 500- and 800-foot stacks and another structure at the site. It’s now seeking opportunities to reuse the space for grid support and other advanced technologies like fusion power. Type One Energy, for example, is building its stellarator prototype in a repurposed area of the plant located alongside the synchronous condenser in the turbine room.

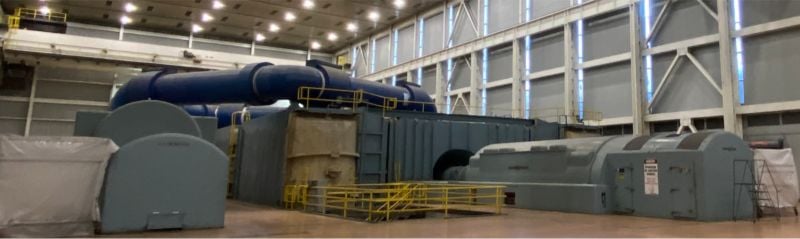

Eaton was selected to lead TVA’s synchronous condenser project. Image used courtesy of Eaton
TVA’s synchronous condenser project is part of a larger grid modernization effort incorporating energy storage expansion, transmission upgrades, and advanced grid control systems. The utility has broader long-term plans to support reliability as it scales back fossil fuel use and brings more renewables online, without compromising system stability or performance.
The utility’s draft 2025 Integrated Resource Plan mentions that more extensive network upgrades will likely be needed as inverter-based solar and battery storage resources continue to expand across the TVA system. This often requires supplemental reactive resource transmission capabilities to ensure system reliability and stability. Grid-supporting equipment like synchronous condensers can provide the reactive power and inertia that inverter-based resources lack.
Engineering a Synchronous Condenser
TVA plans to install the synchronous condensers in the Bull Run Fossil Plant’s turbine building. Eaton will supply its engineering support and electrical distribution and control equipment, such as medium-voltage variable-frequency drives, relay panels, motor control centers, panelboards, and network automation.
Eaton’s synchronous condenser retrofits offer the ability to support voltage peak conditions and system disturbances, including the function to produce or consume reactive power. The condenser system also addresses short-term overload by supplying more than its rated output for short durations.

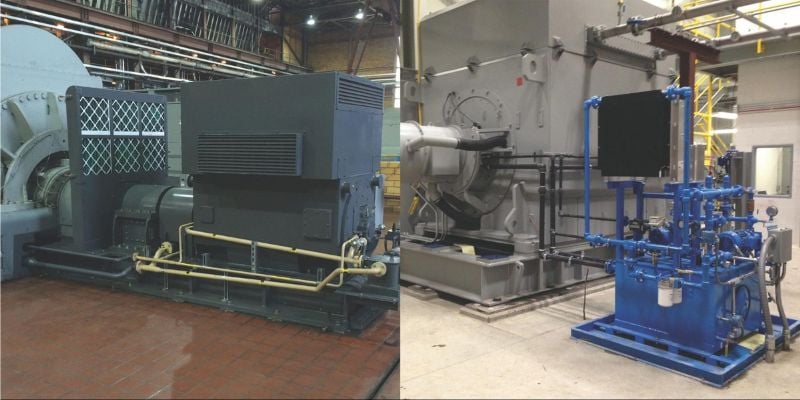

Eaton’s synchronous condensers. Image used courtesy of Eaton
Eaton’s synchronous condenser design and conversion solutions boast several key benefits. In addition to providing inertia and fault current capacity, Eaton condensers offer dynamic voltage control and reactive power compensation (alone or with other devices like switched capacitor banks).
Eaton has completed several similar conversion projects at retiring generating units nationwide, including coal plants in the Central U.S. and Midwest. It has also designed synchronous condenser facilities for wind farms, mining operations, and other customers.
